Illustration Power Hardware in the Loop

Solutions

Testing

Testing and emulating solutions for:

  • Simple signal generation AC & DC, V & I

  • Power grid simulations

  • Electronics loads

  • Rectifiers, inverters, converters

  • Transformers

  • Electrical machines & drive inverters

  • Batteries

  • Charging stations

Go for Compiso

Advantages especially for this market

1

Flexible

extremely flexible and user-friendly applications generate the signals required for standard tests

2

All-in-one

one System for all your test requirements

3

Scaleable

Power rating of 100kVA to 1,2MVA for LV & MV test scenarios

Multi-Purpose Turnkey

Power Amplifiers

We provide the most versatile high-power PHIL test and emulation platforms currently on the market. Accessories like Digital Oscilloscope, Simulation Models and CABINET I/O Box can be found here.

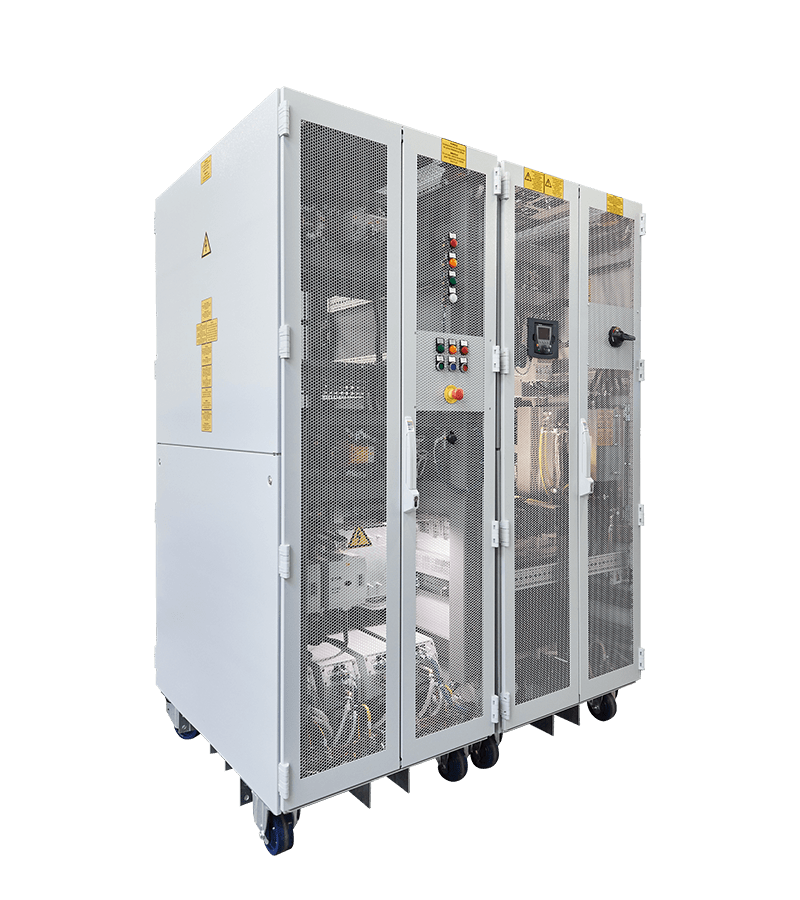

EGSTON Power CSU 100

CSU100

The CSU100 is a galvanically isolated bidirectional 100kVA emulation and test system with either four or six independent four-quadrant power amplifiers.

CSU 100 Details

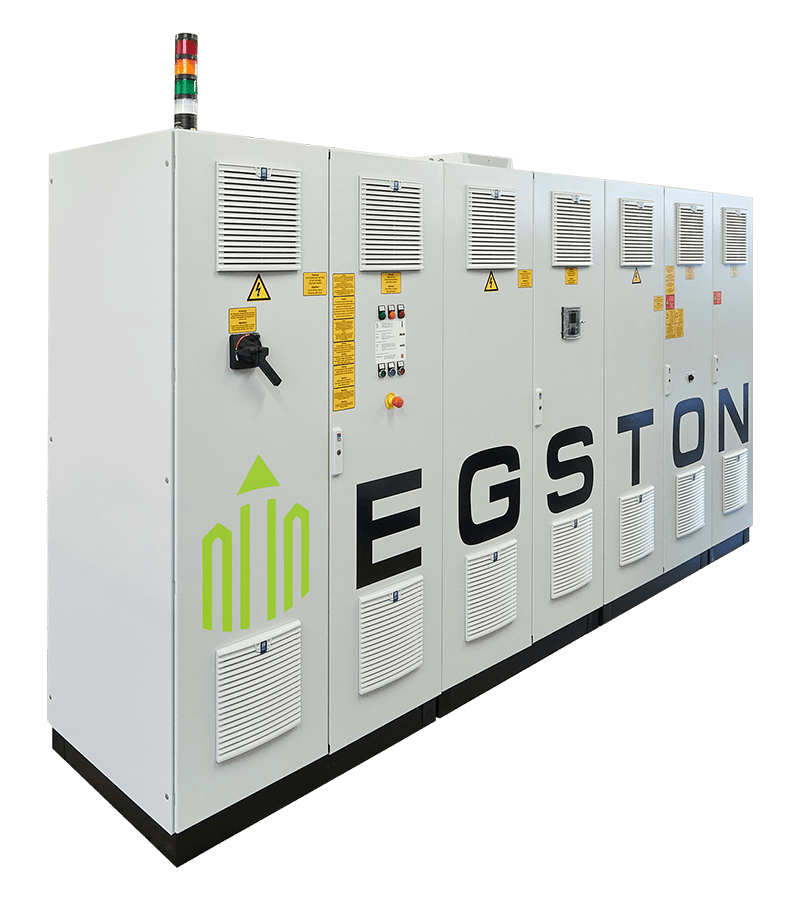

EGSTON Power CSU 200

CSU200

The CSU200 is a galvanically isolated bidirectional 200kVA emulation and test system with either four or six independent four-quadrant power amplifiers.

CSU 200 Details

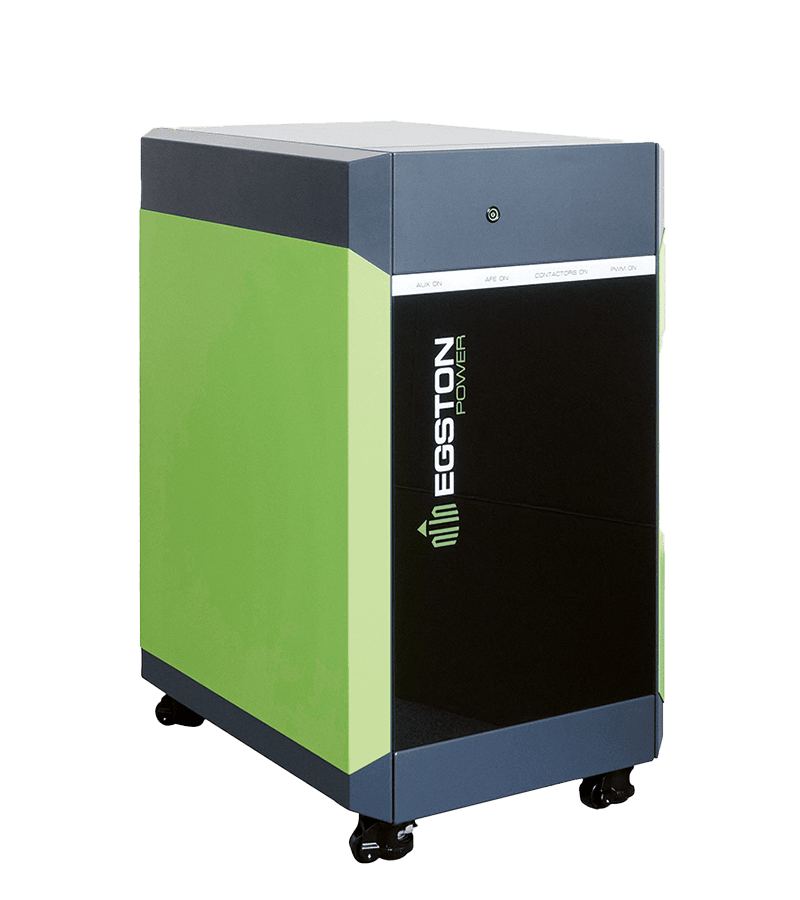

EGSTON Power UHPS

UHPS

UHPS (Ultra High Bandwith PHIL System) is a galvanically isolated bidirectional 10 kVA / 10 kW emulation and test system developed and produced by EGSTON Power Electronics.

UHPS Details

COMPISO System Unit

Case Study

Technical University of Dortmund, ie³ Institute for Energy Systems, Energy Efficiency and Energy Economics, Smart Grid Technology Lab

Installed System: COMPISO System Unit CSU200-2GAMP4
Three 35kVA single-phase isolating output transformers each equipped with CIO Boxes COMPISO Real Time Processor RTP , running the EGSTON AC-Source Application

Researching ambient conditions in varying and flexible Smart Grid configurations. The system has a 200kVA transformer for galvanic isolation, a 4-Quadrand Active Frontend for bidirectional energy flow and two groups of four COMPISO amplifiers (2GAMP4).

TU Dortmund
Case Study (PDF)
