Ultra High Bandwith PHIL System

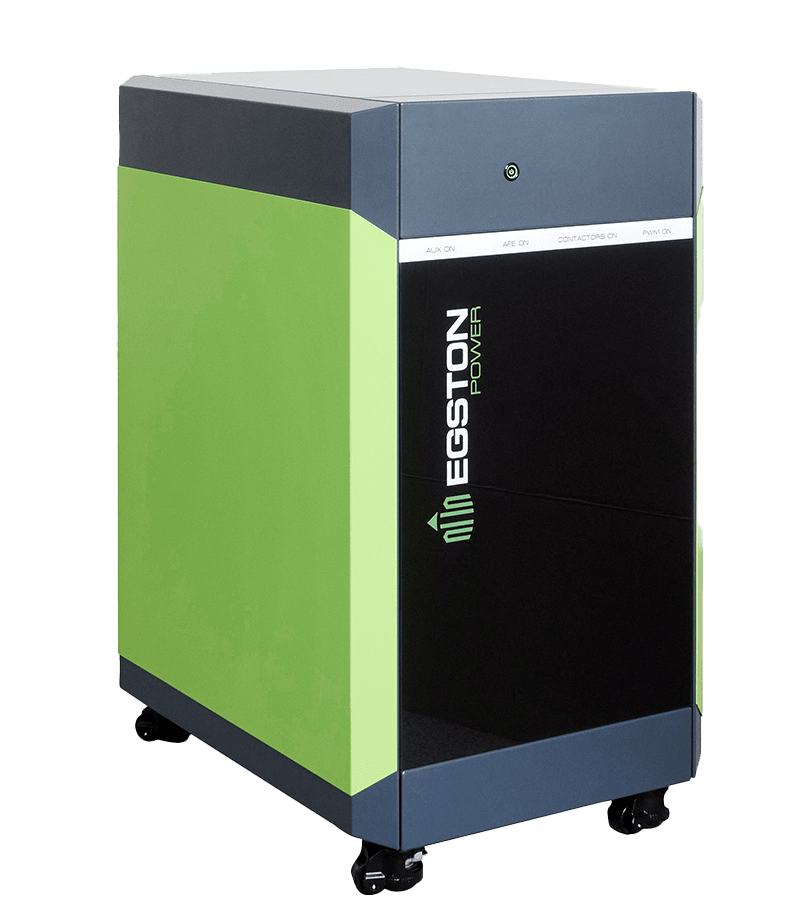

UHPS (Ultra High Bandwidth PHIL System) is a galvanically isolated bidirectional 10 kVA / 10 kW emulation and test system developed and produced by EGSTON Power Electronics. It is capable of operating in single-phase AC mode or bipolar DC mode, as well as a wide range of user-defined HIL-based modes. Three-phase operation can be achieved using three synchronized UHPS units. The system can operate in current or voltage-control mode, with seamless transition between sourcing and sinking power, regenerating it back to the supply grid.
Featuring large-signal bandwidth of 50 kHz and small-signal bandwidth of 100kHz, the system can generate up to the 2000th order harmonics of a 50Hz fundamental or the 1666th order of +a 60Hz fundamental. Interharmonics up to 100kHz can be generated for smooth frequency sweeps. ECC-UHPS is a proprietary software developed by EGSTON Power to control, monitor and configure one or multiple UHPS units.
An EGSTON App (4QAC or 4QDC) or an external HIL can provide the setpoints via a fast fiber/optic (SFP) interface. An integrated function generator can also provide setpoints, so a UHPS unit can operate as a highfrequency, low-latency 4Q AC or DC source out of the box.
Up to 50kHz, enabling users to master even the most challenging tasks and generate a wide variety of waveforms, including harmonics, sub-harmonics, and inter-harmonics
The system features bidirectional power flow combined with full four-quadrant operation, allowing users to easily switch between source and load operations
Enabling users to run applications provided through the EGSTON Power software platform but also to connect to all major HIL systems
Generates both DC and AC signals while remaining compact enough to fit into any lab, ensuring it is future-proof equipment
Made in Austria
EGSTON Power Electronics aims to develop products that consistently meet the highest expectations for quality, reliability and function. Our products are mounted in racks, yet we are not afraid to think outside the box, and we keep doing that throughout all phases of every single project to achieve total customer satisfaction. To this same end, we also maintain productive collaborations with internationally reputed research and education facilities.
On-Site Service
Take advantage of our comprehensive after-sales service. Our on-site service team will be at hand for smooth installation and commissioning, complete with detailed hands-on training for your staff.
Schedule a live demo with one of our product specialists at your convenience. We can learn about your requirements and answer your questions.
